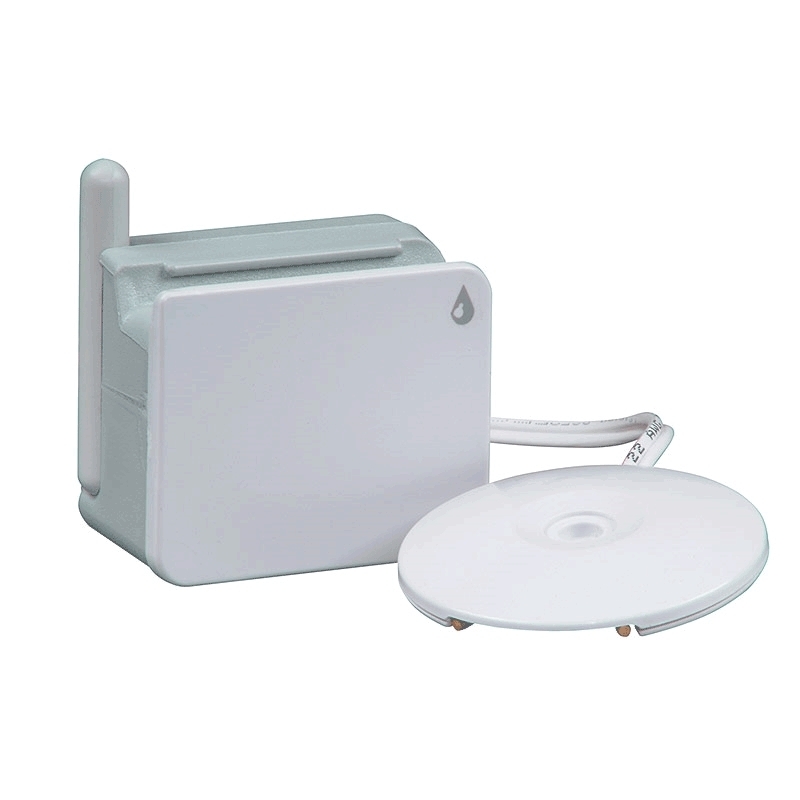

Water Sensor for the Home Heartbeat



Water Sensor for the Home HeartbeatThe following table identifies the values that are valid for each field of the state record. For a complete description of these values and their use, please see the State Table of The Eaton Home Heartbeat document.

Field Name Data
1 State Record ID A value from 2 (0x02) to 33 (0x21) is assigned to this device
2 ZigBee Binding ID A value from 0 (0x00) to 31 (0x1F) is assigned to this device
3 Device Capabilities Bit 2 (0x04)  –  Is a sensor
Bit 5 (0x20)  –  Is a sensor
4 Device Type 5 (0x0005)  –  Water
5 Device State Bit 0 (0x01)  –  Wet
Bit 1 (0x02)  –  Dry
6 Device State Timer Values from 0 (0x00) to 59 (0x3B) represent 0 to 59 seconds
Values from 64 (0x40) to 123 (0x7B) represent 0 to 59 minutes
Values from 128 (0x80) to 151 (0x97) represent 0 to 23 hours
Values from 160 (0xA0) to 255 (0xFF) represent 0 to 95 days
7 Device Alerts Bit 0 (0x01) – Alarm triggered; controlled by Field 9: Device Configuration
Bit 1 (0x02) – Device off-line, out of range, or battery dead
Bit 2 (0x04) – Low Battery signal sent during “I’m Alive” message from device
8 Device Name Index
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Water Sensor
Basement Floor
Bathroom Floor
Shower
Sump Pump
Toilet
Washing Machine
Water Heater
Attic
Bedroom
Crawl Space
Dining Room
Garage
Laundry Room
Living Room
15
16
17
18
19
20
21
22
23
24
25
26
27
28
Loft
Mud Room
Storage Area
Bathroom Sink
Kitchen Sink
Under Sink
Utility Sink
Cat Bowl
Dog Bowl
Fish Tank
Fountain
Garden
Pool
Water Bowl
9 Device Configuration Bit 0 (0x0001)  –  Alarm on Wet
Bit 1 (0x0002)  –  Alarm on Dry
Bit 8 (0x0100)  –  Call me on Wet
Bit 9 (0x0200)  –  Call me on Dry
10 Alive Update Timer Values from 0 (0x00) to 59 (0x3B) represent 0 to 59 seconds
Values from 64 (0x40) to 123 (0x7B) represent 0 to 59 minutes
Values from 128 (0x80) to 151 (0x97) represent 0 to 23 hours
Values from 160 (0xA0) to 255 (0xFF) represent 0 to 95 days
11 Update Flags 0x0000  –  Not used by this device
12 Undefined 0x00
13 Device Parameter 0xFF  –  Not used by this device
14 Undefined 0x00000000
15 Pending Update Timer 0x00  –  Not used by this device
16 MAC Address 0x000D6F**********
17 Device Name Text name chosen from index list in field 8 above.
An upper or lower case letter may be appended to this name.
