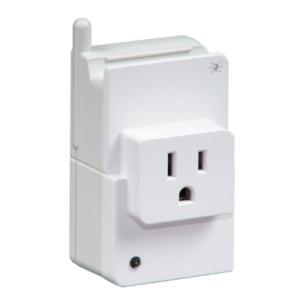

Power Sensor for the Home Heartbeat



Power Sensor for the Home HeartbeatThe following table identifies the values that are valid for each field of the state record. For a complete description of these values and their use, please see the State Table of The Eaton Home Heartbeat document.

Field Name Data
1 State Record ID A value from 2 (0x02) to 33 (0x21) is assigned to this device
2 ZigBee Binding ID A value from 0 (0x00) to 31 (0x1F) is assigned to this device
3 Device Capabilities Bit 2 (0x04)  –  Is a sensor
Bit 4 (0x10)  –  Can receive parameters
Bit 5 (0x20)  –  Is a sensor
Bit 7 (0x80)  –  Is AC powered
4 Device Type 4 (0x0004) – Power
5 Device State Bit 0 (0x01)  –  Off
Bit 1 (0x02)  –  On
6 Device State Timer Values from 0 (0x00) to 59 (0x3B) represent 0 to 59 seconds
Values from 64 (0x40) to 123 (0x7B) represent 0 to 59 minutes
Values from 128 (0x80) to 151 (0x97) represent 0 to 23 hours
Values from 160 (0xA0) to 255 (0xFF) represent 0 to 95 days
7 Device Alerts Bit 0 (0x01)  –  Alarm triggered; controlled by Field 9: Device Configuration
Bit 1 (0x02)  –  Device off-line, out of range, or battery dead
Bit 2 (0x04)  –  Low Battery signal sent during “I’m Alive” message from device
8 Device Name Index
0
1
2
3
4
5
6
7
8
9
10
11
12
13
Power Sensor
Appliance
Alarm Clock
Child Monitor
Coffee Maker
Computer
Curling Iron
Dehumidifier
Fax Machine
Floor Lamp
Gaming System
Iron
Lamp
Light
14
15
16
17
18
19
20
21
22
23
24
25
26
Microwave
Motor
Outdoor Light
Power Tool
Printer
Stereo
Sump Pump
Toaster Oven
TV
This Thing
That Thing
Those Things
VCR
9 Device Configuration Bit 0 (0x0001)  –  Alarm on Off
Bit 1 (0x0002)  –  Alarm on On
Bit 8 (0x0100)  –  Call me on Off
Bit 9 (0x0200)  –  Call me on On
10 Alive Update Timer Values from 0 (0x00) to 59 (0x3B) represent 0 to 59 seconds
Values from 64 (0x40) to 123 (0x7B) represent 0 to 59 minutes
Values from 128 (0x80) to 151 (0x97) represent 0 to 23 hours
Values from 160 (0xA0) to 255 (0xFF) represent 0 to 95 days
11 Update Flags 0x0000 – No update required
0x0080 – Update required
12 Undefined 0x00
13 Device Parameter 0 (0x00)  –  Very Sensitive
1 (0x01)  –  Default Sensitivity
2 (0x02)  –  Less Sensitive
3 (0x03)  –  Least Sensitive
14 Undefined 0x00000000
15 Pending Update Timer Values from 0 (0x00) to 59 (0x3B) represent 0 to 59 seconds
Values from 64 (0x40) to 123 (0x7B) represent 0 to 59 minutes
Values from 128 (0x80) to 151 (0x97) represent 0 to 23 hours
Values from 160 (0xA0) to 255 (0xFF) represent 0 to 95 days
16 MAC Address 0x000D6F**********
17 Device Name Text name chosen from index list in field 8 above.
An upper or lower case letter may be appended to this name.
