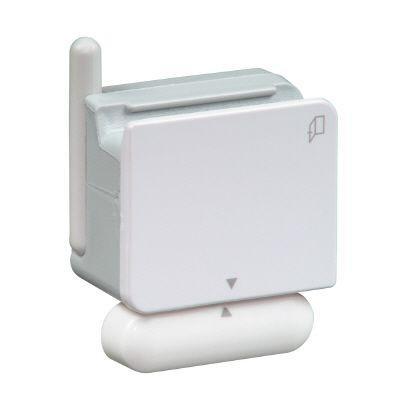

Open/Closed Sensor for the Home Heartbeat



Open/Closed Sensor for the Home HeartbeatThe following table identifies the values that are valid for each field of the state record. For a complete description of these values and their use, please see the State Table of The Eaton Home Heartbeat document.

Field Name Data
1 State Record ID A value from 2 (0x02) to 33 (0x21) is assigned to this device
2 ZigBee Binding ID A value from 0 (0x00) to 31 (0x1F) is assigned to this device
3 Device Capabilities Bit 2 (0x04)  –  Is a sensor
Bit 5 (0x20)  –  Is a sensor
4 Device Type 3 (0x0003)  –  Open/Closed
5 Device State Bit 0 (0x01)  –  Closed
Bit 1 (0x02)  –  Open
6 Device State Timer Values from 0 (0x00) to 59 (0x3B) represent 0 to 59 seconds
Values from 64 (0x40) to 123 (0x7B) represent 0 to 59 minutes
Values from 128 (0x80) to 151 (0x97) represent 0 to 23 hours
Values from 160 (0xA0) to 255 (0xFF) represent 0 to 95 days
7 Device Alerts Bit 0 (0x01)  –  Alarm triggered; controlled by Field 9: Device Configuration
Bit 1 (0x02)  –  Device off-line, out of range, or battery dead
Bit 2 (0x04)  –  Low Battery signal sent during “I’m Alive” message from device
8 Device Name Index
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
Open/Closed
Door
Window
Back Door
Basement Door
Bathroom Door
Bedroom Door
Deck Door
Dining Room Door
Front Door
Garage Door
Kitchen Door
Pet Door
Side Door
Back Window
Basement Window
Bathroom Window
Bedroom Window
Dining Room Window
Front Window
20
21
22
23
24
25
26
27
28
29
30
31
32
32
34
35
36
37
38
Kitchen Window
Living Room Window
Side Window
Closet
Cabinet
Kitchen Cabinet
Drawer
Utensil Drawer
Freezer
Gun Cabinet
Jewelry Box
Mail Box
Pantry
Refrigerator
Safe
Storage Area
Supply Room
Trunk
TV/Stereo Cabinet
9 Device Configuration Bit 0 (0x0001)  –  Alarm on Closed
Bit 1 (0x0002)  –  Alarm on Opened
Bit 8 (0x0100)  –  Call me on Closed
Bit 9 (0x0200)  –  Call me on Opened
10 Alive Update Timer Values from 0 (0x00) to 59 (0x3B) represent 0 to 59 seconds
Values from 64 (0x40) to 123 (0x7B) represent 0 to 59 minutes
Values from 128 (0x80) to 151 (0x97) represent 0 to 23 hours
Values from 160 (0xA0) to 255 (0xFF) represent 0 to 95 days
11 Update Flags 0x0000  –  Not used by this device
12 Undefined 0x00
13 Device Parameter 0xFF  –  Not used by this device
14 Undefined 0x00000000
15 Pending Update Timer 0x00  –  Not used by this device
16 MAC Address 0x000D6F**********
17 Device Name Text name chosen from index list in field 8 above.
An upper or lower case letter may be appended to this name.
