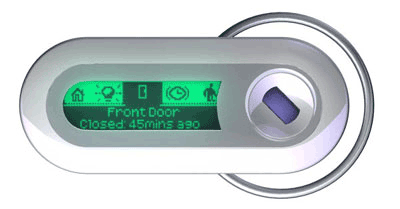

Home Key for the Home Heartbeat



The following table identifies the values that are valid for each field of the state record. For a complete description of these values and their use, please see the State Table of The Eaton Home Heartbeat document.

Field Name Data
1 State Record ID A value from 2 (0x02) to 33 (0x21) is assigned to this device
2 ZigBee Binding ID A value from 0 (0x00) to 31 (0x1F) is assigned to this device
3 Device Capabilities Bit 6 (0x40)  –  Is a Home Key
4 Device Type 2 (0x0002)  –  Home Key
5 Device State 0x00  –  Not used by this device
6 Device State Timer Values from 0 (0x00) to 59 (0x3B) represent 0 to 59 seconds
Values from 64 (0x40) to 123 (0x7B) represent 0 to 59 minutes
Values from 128 (0x80) to 151 (0x97) represent 0 to 23 hours
Values from 160 (0xA0) to 255 (0xFF) represent 0 to 95 days
7 Device Alerts Bit 0 (0x01)  –  Alarm triggered; controlled by Field 9: Device Configuration
Bit 1 (0x02)  –  Device off-line, out of range, or battery dead
Bit 2 (0x04)  –  Low Battery signal sent during “I’m Alive” message from device
Bit 3 (0x08)  –  Battery charging; only valid for Home Key devices
8 Device Name Index
0
1
2
3
4
5
Home Key
Dad’s Key
Mom’s Key
Kid’s Key
Son’s Key
Daughter’s Key
6
7
8
9
10
11
Blue Key
Red Key
Green Key
Yellow Key
Extra Key
Neighbor’s Key
9 Device Configuration One item is selected from each of these two
sections. The values are logically ORed together


0 (0x0000)  –  Silent Alarm
1 (0x0001)  –  Beep Alarm
2 (0x0002)  –  Vibrate Alarm


0 (0x0000)  –  10 sec battery update
256 (0x0100)  –  30 sec battery update
512 (0x0200)  –  1 min battery update
768 (0x0300)  –  2 min battery update
1024 (0x0400)  –  15 min battery update
1280 (0x0500)  –  1 hour battery update

10 Alive Update Timer Values from 0 (0x00) to 59 (0x3B) represent 0 to 59 seconds
Values from 64 (0x40) to 123 (0x7B) represent 0 to 59 minutes
Values from 128 (0x80) to 151 (0x97) represent 0 to 23 hours
Values from 160 (0xA0) to 255 (0xFF) represent 0 to 95 days
11 Update Flags 0x0000  –  Not used by this device
12 Undefined 0x00
13 Device Parameter 0xFF  –  Not used by this device
14 Undefined 0x00000000
15 Pending Update Timer 0x00  –  Not used by this device
16 MAC Address 0x000D6F**********
17 Device Name Text name chosen from index list in field 8 above.
An upper or lower case letter may be appended to this name.
