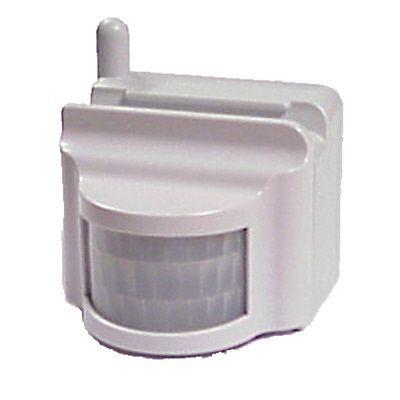

Motion Sensor for the Home Heartbeat



Motion Sensor for the Home HeartbeatThe following table identifies the values that are valid for each field of the state record. For a complete description of these values and their use, please see the State Table of The Eaton Home Heartbeat document.

Field Name Data
1 State Record ID A value from 2 (0x02) to 33 (0x21) is assigned to this device
2 ZigBee Binding ID A value from 0 (0x00) to 31 (0x1F) is assigned to this device
3 Device Capabilities Bit 2 (0x04)  –  Is a sensor
Bit 4 (0x10)  –  Can receive parameters
Bit 5 (0x20)  –  Is a sensor
4 Device Type 23 (0x0017)  –  Motion
5 Device State Bit 0 (0x01)  –  No Motion
Bit 1 (0x02)  –  Motion
6 Device State Timer Values from 0 (0x00) to 59 (0x3B) represent 0 to 59 seconds
Values from 64 (0x40) to 123 (0x7B) represent 0 to 59 minutes
Values from 128 (0x80) to 151 (0x97) represent 0 to 23 hours
Values from 160 (0xA0) to 255 (0xFF) represent 0 to 95 days
7 Device Alerts Bit 0 (0x01)  –  Alarm triggered; controlled by Field 9: Device Configuration
Bit 1 (0x02)  –  Device off-line, out of range, or battery dead
Bit 2 (0x04)  –  Low Battery signal sent during “I’m Alive” message from device
Bit 3 (0x08)  –  Battery charging; only valid for Home Key devices
8 Device Name Index
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Motion Sensor
Attic
Back Door
Basement
Bathroom
Bedroom
Child’s Room
Dining Room
Entryway
Front Door
Game Room
Garage
Garage Door
Kitchen
Hallway
Laundry Room
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
Pet Door
Sliding Door
Back Porch
Back Yard
Driveway
Detached Garage
Front Porch
Front Yard
Shed
Tool Shed
Mom’s Home
Dad’s Home
Grandma’s Home
Grandpa’s Home
Vacation Home
9 Device Configuration Bit 0 (0x0001)  –  Alarm on No Motion
Bit 1 (0x0002)  –  Alarm on Motion
Bit 8 (0x0100)  –  Call me on No Motion
Bit 9 (0x0200)  –  Call me on Motion
10 Alive Update Timer Values from 0 (0x00) to 59 (0x3B) represent 0 to 59 seconds
Values from 64 (0x40) to 123 (0x7B) represent 0 to 59 minutes
Values from 128 (0x80) to 151 (0x97) represent 0 to 23 hours
Values from 160 (0xA0) to 255 (0xFF) represent 0 to 95 days
11 Update Flags 0x0000  –  No update required
0x0080  –  Update required
12 Undefined 0x00
13 Device Parameter 0 (0x00)  –  10 sec Delay
1 (0x01)  –  1 min Delay
2 (0x02)  –  5 min Delay
3 (0x03)  –  10 min Delay
4 (0x04)  –  30 min Delay
5 (0x05)  –  1 hour Delay
6 (0x06)  –  2 hour Delay
14 Undefined 0x00000000
15 Pending Update Timer Values from 0 (0x00) to 59 (0x3B) represent 0 to 59 seconds
Values from 64 (0x40) to 123 (0x7B) represent 0 to 59 minutes
Values from 128 (0x80) to 151 (0x97) represent 0 to 23 hours
Values from 160 (0xA0) to 255 (0xFF) represent 0 to 95 days
16 MAC Address 0x000D6F**********
17 Device Name Text name chosen from index list in field 8 above.
An upper or lower case letter may be appended to this name.
 Posted by at 4:51 pm

  3 Responses to “Motion Sensor for the Home Heartbeat”

  1. Greetings! During the process of coding up a script to digest all of the base station’s output I’ve noticed that my Motion Sensors currently output a “Device Configuration” (field 9) value of “0000”. I believe I have no alarm or call home status set which is a valid but was missing from your listing.

    Thanks!
    -dosman

    • If you see 0x0000 in field 9 then there are no bits set which indeed means that there are no alarms or call home currently enabled. Looks fine to me.

  2. One other thing… The name index table is off by 1 starting at “Pet Door” (Pet Door should be index 16) for a total of 30 items in the table.
